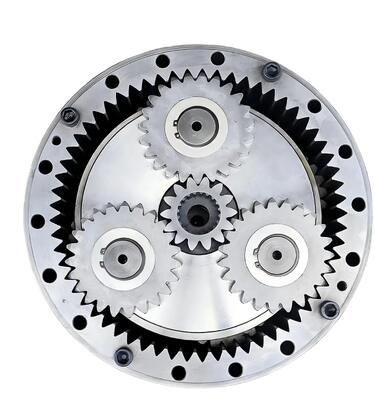

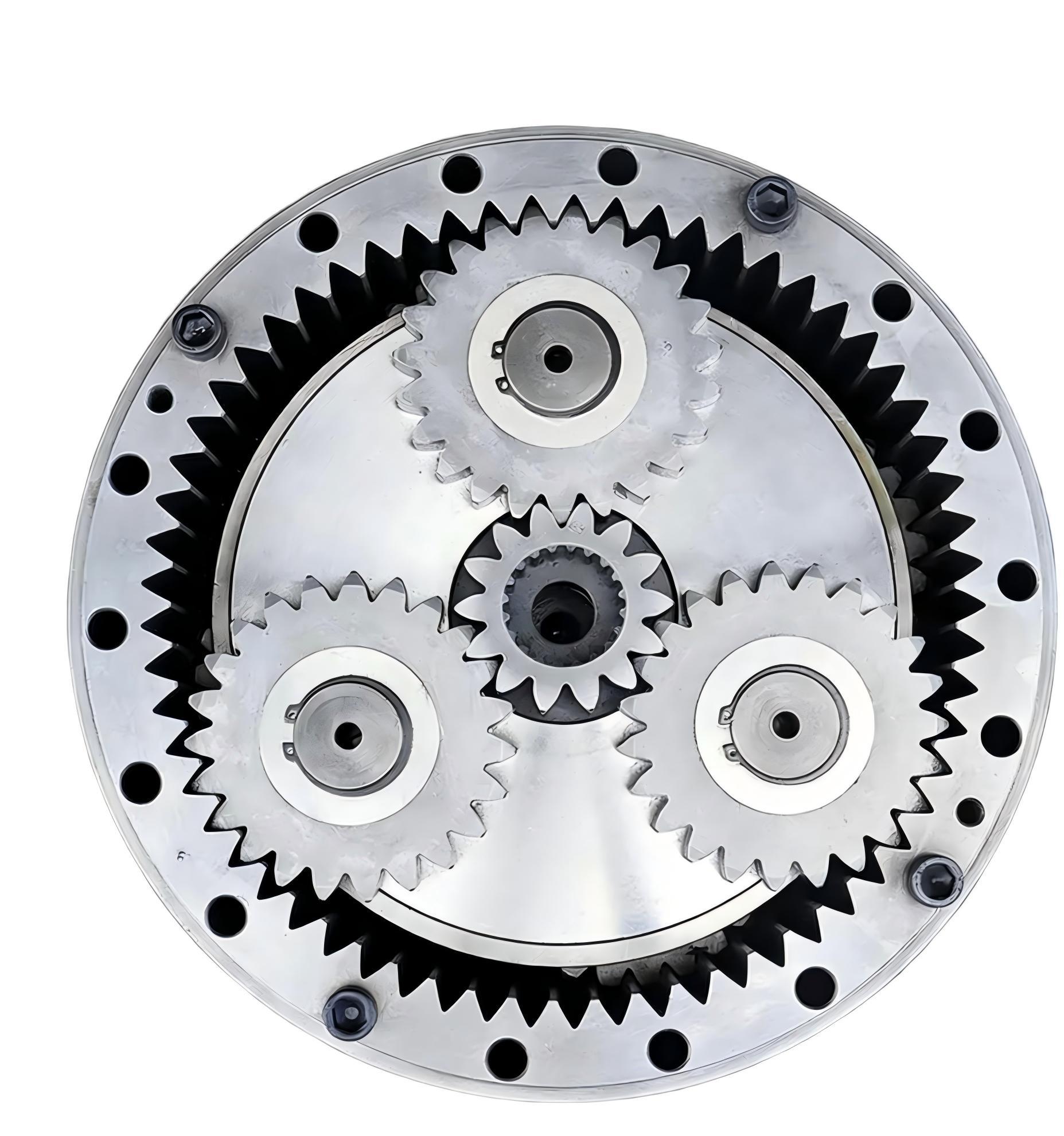

KTC11150 GEAR REDUCTION FOR CX460 CX470B

  • KTC11150 GEAR REDUCTION FOR CX460 CX470B
  • KTC11150 GEAR REDUCTION FOR CX460 CX470B
  • KTC11150 GEAR REDUCTION FOR CX460 CX470B
Τόπος καταγωγής Κατασκευάζεται στην Κίνα
Μάρκα TCY
Αριθμό μοντέλου CX460 CX470B CX490 SH490
Ποσότητα παραγγελίας min 1
Συσκευασία λεπτομέρειες ξύλινη θήκη
Χρόνος παράδοσης 2-3/Επιπραγματεύσεις
Όροι πληρωμής Τ/Τ, Alipay, Wechat... κλπ., Western Union, MoneyGram, D/P
Λεπτομέρειες
Μοντέλο CX460 CX470B CX490 SH490 Όνομα προϊόντος Εργαλείο μείωσης ταλάντευσης
Μέρος ΑΡΙΘ. KTC0185 KTC10240R KTC11150 MOQ 1 τεμ
Βάρος 450 κιλά ξύλινη θήκη 55*55*60
Κατάσταση Νέος Μάρκα TCY
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

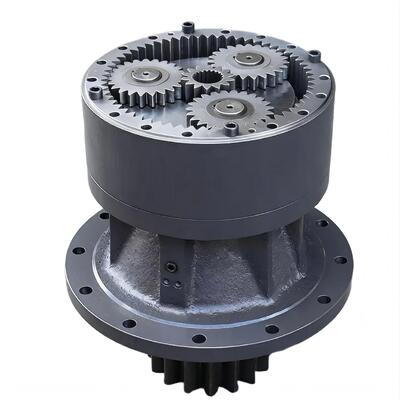

KTC0185 KTC10240R KTC11150 GEAR REDUCTION FOR CX460 CX470B SWING DEVICE


Model: CX330 CX350 Part name:Swing Reduction Gear
Part NO.:KSC0253 KSC0247 KSC10170 MOQ:1PCS
Packing:Wooden case Place of Origin:China
Aftersale service provided:Online support  Apply To:CASE Excavator
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online



Product

KTC11150 GEAR REDUCTION FOR CX460 CX470B 0

Pos Part No Qty Parts name
3 KTC0185 [1] GEAR REDUCTION UNIT
3 KTC10240R [1] REMAN-REDUCTION UNIT
3 KTC10240C [1] CORE-REDUCTION UNIT
4 KTC0160 [1] SUN GEAR
5 NSS [1] NOT SOLD SEPARAT
6 KTC0182 [1] SHAFT, PLANETARY CAR
7 KTC0161 [1] SUN GEAR
8 KTC0166 [1] RING GEAR
9 KTC0183 [1] PINION CARRIER
9.5 KTC0188 [1] PLANETARY REDUCER
10 KTC0155 [4] PIN
11 KTC0170 [1] HOUSING
12 KTC0150 [1] BEARING,130mm ID x 210mm OD x 64mm W
13 150824A1 [1] PLUG
14 158352A1 [2] PLUG
15 KTC0158 [1] RETAINING WIRE
16 KTC0151 [1] SPACER
17 KTC0159 [1] RETAINING WIRE
18 KTC0152 [1] BEARING COVER
19 KTC0154 [1] SPACER
20 150252A1 [1] BEARING,140 mm ID x 300 mm OD x 102 mm
22 KTC0153 [1] OIL SEAL
23 KTC0184 [1] SHAFT ASSY.
24 NSS [4] NOT SOLD SEPARAT
25 NSS [7] NOT SOLD SEPARAT
26 NSS [4] NOT SOLD SEPARAT
27 NSS [4] NOT SOLD SEPARAT
28 NSS [3] NOT SOLD SEPARAT
29 150237A1 [18] BOLT,Hex Skt
30 NSS [3] NOT SOLD SEPARAT

Related Products



KTC11150 GEAR REDUCTION FOR CX460 CX470B 1

Exhibition

KTC11150 GEAR REDUCTION FOR CX460 CX470B 2



Company Introduction

KTC11150 GEAR REDUCTION FOR CX460 CX470B 3

KTC11150 GEAR REDUCTION FOR CX460 CX470B 4

Packaging

KTC11150 GEAR REDUCTION FOR CX460 CX470B 5



KTC11150 GEAR REDUCTION FOR CX460 CX470B 6




FAQ



Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.



Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.



Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be         prepared after receiving the payment. The preparation time depends on the content of the order.



Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
