191-3238 DRIVE FINAL 191-3246 FOR CAT325BL 322BL
| Μάρκα | TCY |
|---|---|
| Αριθμό μοντέλου | CAT 325BL 322BL |
| Ποσότητα παραγγελίας min | 1 |
| Τιμή | 1000-3000 |
| Συσκευασία λεπτομέρειες | ξύλινη θήκη |
| Χρόνος παράδοσης | 2-3/Επιπραγματεύσεις |
| Όροι πληρωμής | T/T, Alipay, Wechat... κλπ., |
Λεπτομέρειες
| Αριθμός ανταλλακτικού | 191-3246 191-3238 | Όνομα μέρους | Συνέλευση μηχανών ταξιδιού |
|---|---|---|---|
| Αίτηση για | CAT325BL 322BL | Ποιότητα | Ψηλά |
| Κατάσταση | Νέος | Ξύλινο μέγεθος κιβωτίων | 50*50*55 |
| Βάρος | 410 κιλά | MOQ | 1 |
| Εφαρμογή | Cat Excavator Final drive |
Περιγραφή προϊόντων

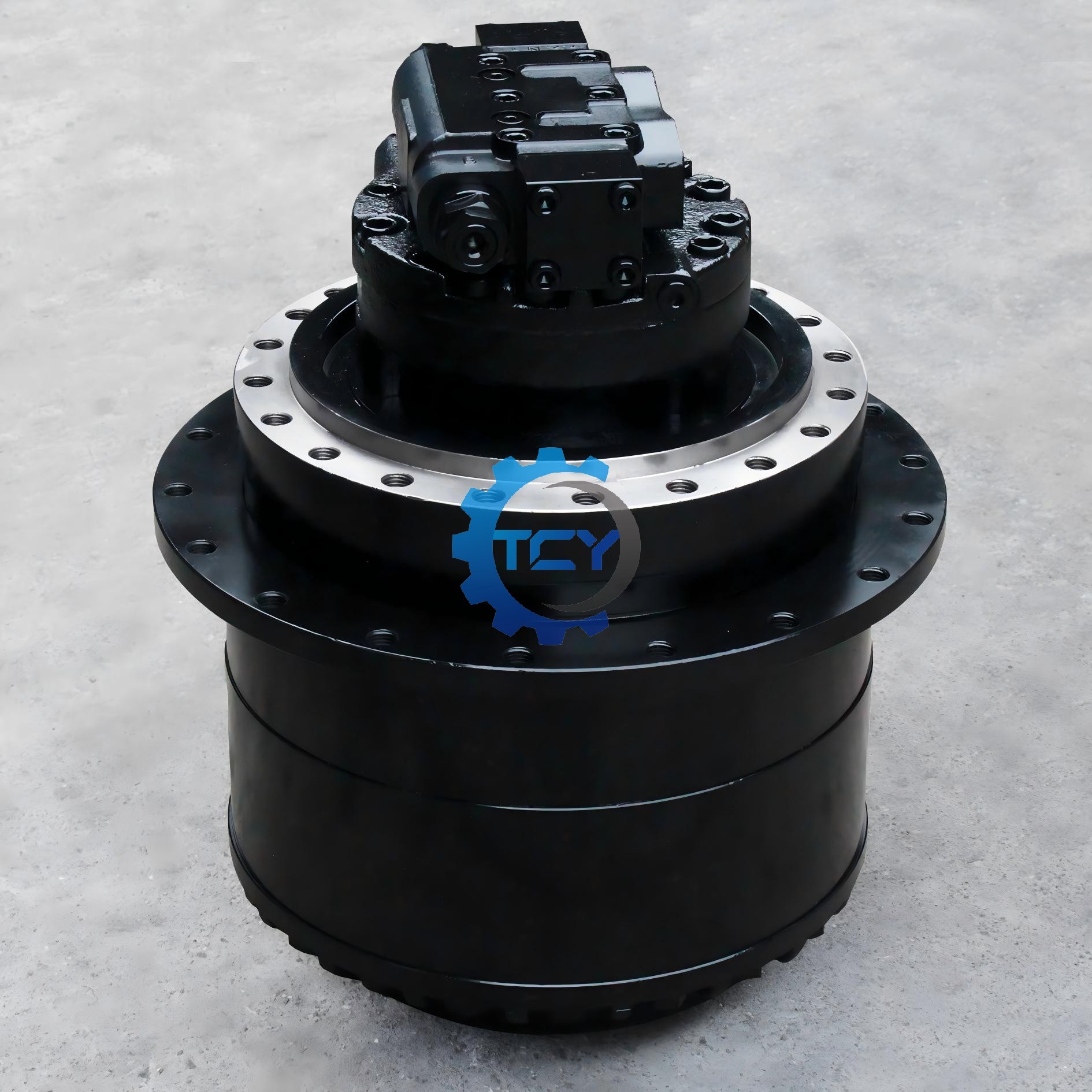

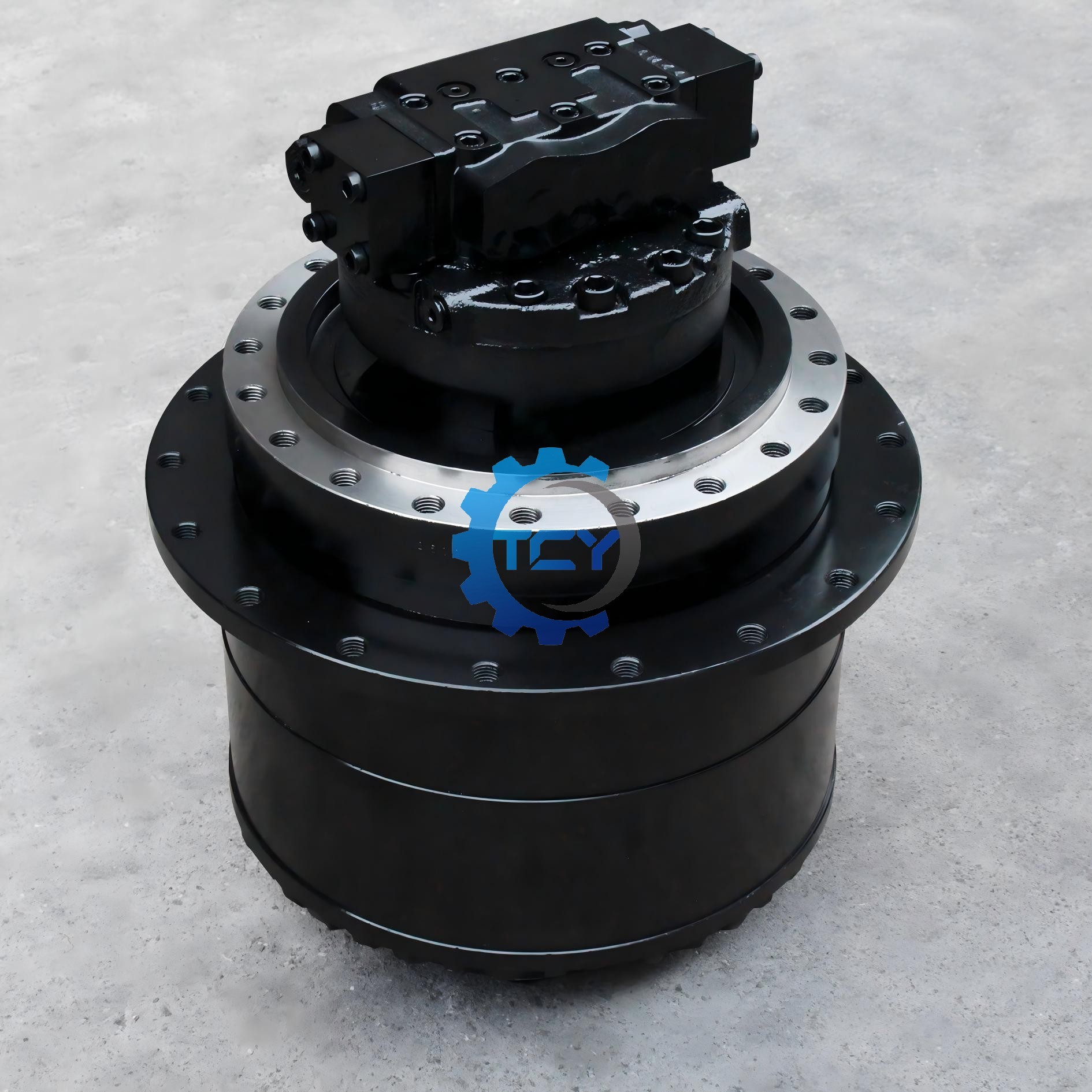

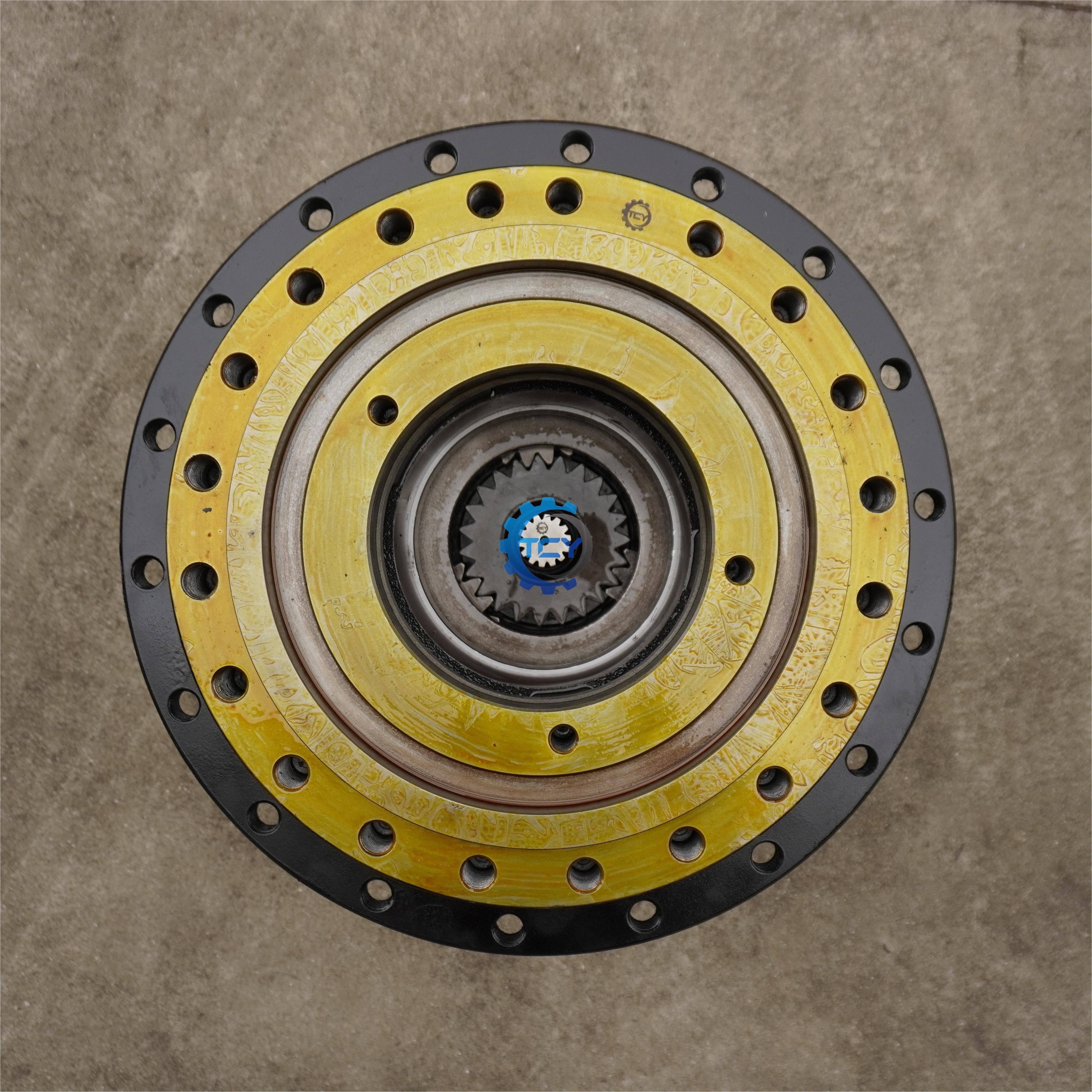

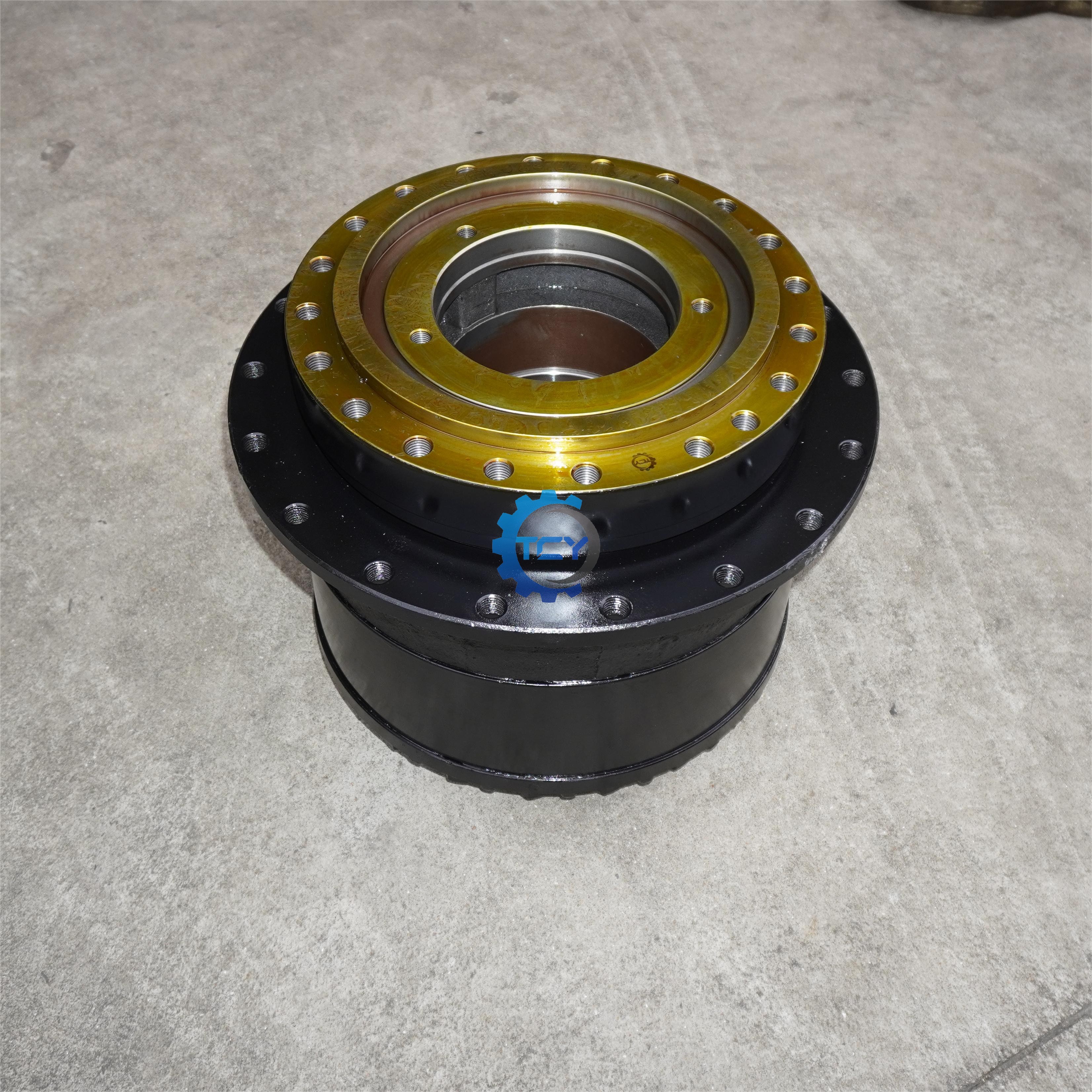

191-3238 DRIVE FINAL 191-3246 FOR CAT325BL 322BL TRAVEL MOTOR
Model: CAT325BL 322BL |
Part name:Travel Motor with gearbox |
Part NO:191-3246 191-3238 |
MOQ:1PCS |
Packing:Wooden case |
Place of Origin:Made in China |
Aftersale service provided:Online support |
Apply To:Excavator Final Device |
Delivery Time: 1-3 days Or negotiate |
Note: Other models can be consulted online |
Product
| Pos. | Part No | Qty | Parts name |
| 1 | 191-3240 | [1] | HOUSING |
| 2 | 3T-8500 | [1] | SEAL GP-DUO-CONE |
| 3P-1849 | [2] | RING-SEALING | |
| 3 | 7Y-5217 M | [16] | BOLT-SOCKET HEAD (M20X2.5X70-MM) |
| 4 | 110-7056 | [3] | GEAR-PLANETARY (23-TEETH) |
| 5 | 110-7049 | [1] | GEAR-SUN (24-TEETH) |
| 6 | 094-0574 | [2] | RING-RETAINING |
| 7 | 110-7051 | [1] | GEAR-SUN (23-TEETH) |
| 8 | 110-7059 | [1] | CARRIER-PLANETARY |
| 9 | 114-1540 | [4] | PIN-DOWEL |
| 10 | 168-8452 | [2] | BALL BEARING |
| 11 | 7Y-0746 B | [1] | SHIM (0.15-MM THK) |
| 12 | 7Y-0219 | [1] | GEAR-COUPLING (58-TEETH) |
| 13 | 110-7058 | [1] | CARRIER-PLANETARY |
| 14 | 110-7055 | [1] | GEAR-RING (66-TEETH) |
| 15 | 7M-8485 | [2] | SEAL-O-RING |
| 16 | 3E-2338 | [2] | PLUG-PIPE |
| 17 | 110-7050 | [1] | GEAR-SUN (23-TEETH) |
| 18 | 191-3239 | [1] | HOUSING |
| 19 | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) |
| 20 | 8T-4240 | [3] | RING-RETAINING |
| 21 | 110-7209 | [1] | CARRIER AS |
| 22 | 7Y-0251 | [3] | BEARING AS-ROLLER |
| 23 | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) |
| 24 | 7Y-0213 | [3] | GEAR-PLANETARY (21-TEETH) |
| 25 | 9X-6032 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) |
| 26 | 7X-2568 M | [20] | BOLT (M20X2.5X180-MM) |
| 27 | 7Y-0896 | [1] | COVER |
| 28 | 110-7053 | [3] | GEAR-PLANETARY (23-TEETH) |
| 29 | 7Y-0252 | [3] | BEARING AS-ROLLER |
| 30 | 094-0579 | [1] | PLATE (9-MM THK) |
| 094-0578 | [1] | PLATE (8-MM THK) | |
| 094-0580 | [1] | PLATE (10-MM THK) | |
| 31 | 7Y-0248 | [1] | SPACER |
| 32 | 7Y-0225 | [3] | SHAFT-PLANETARY |
| 33 | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) |
| 34 | 095-0891 | [6] | PIN-SPRING |
| 35 | 7Y-0999 | [1] | GEAR-RING (70-TEETH) |
| 36 | 094-1542 | [6] | BEARING-ROLLER |
| 37 | 6D-0692 | [1] | SEAL-O-RING |
| 38 | 094-1528 | [6] | WASHER (53X84X1-MM THK) |
| 39 | 7Y-0223 | [3] | SHAFT-PLANETARY |
| 40 | 7Y-0747 B | [1] | SHIM (0.3-MM THK) |
| 7Y-0748 B | [1] | SHIM (0.4-MM THK) | |
| 7Y-0749 B | [1] | SHIM (0.5-MM THK) | |
| 7Y-0750 B | [1] | SHIM (0.6-MM THK) | |
| 7Y-0751 B | [1] | SHIM (0.7-MM THK) | |
| 7Y-0752 B | [1] | SHIM (0.8-MM THK) | |
| 7Y-0753 B | [1] | SHIM (1-MM THK) | |
| 7Y-0754 B | [1] | SHIM (1.6-MM THK) | |
| 41 | 096-3216 M | [2] | SET SCREW-SOCKET (M12X1.75X12-MM) |
| 42 | 8T-4123 | [20] | WASHER (3.62X5.75X0.375-MM THK) |
| 43 | 1U-0840 | [1] | SEAL ANT-GASKET |
Exhibition
Shipping
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
