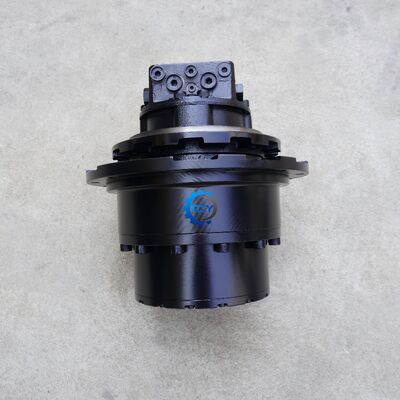

9224241 Travel Motor with gearbox FOR ZX75UR TRAVEL DEVICE HITACHI
| Αριθμός ανταλλακτικού | 9224241 9224123 | Όνομα μέρους | Συνέλευση μηχανών ταξιδιού |
|---|---|---|---|
| Αίτηση για | ZX70 ZX75UR ZX75URT ZX75US-A ZX75UST ZX80LCK ZX8OSB-HCME ZX85US-HCME | Ποιότητα | Ψηλά |
| Κατάσταση | Νέος | Ξύλινο μέγεθος κιβωτίων | 55*55*62 |
| βάρος | 130 κιλά | MOQ | 1 |
| Εφαρμογή | τελική κίνηση εκσκαφέα |

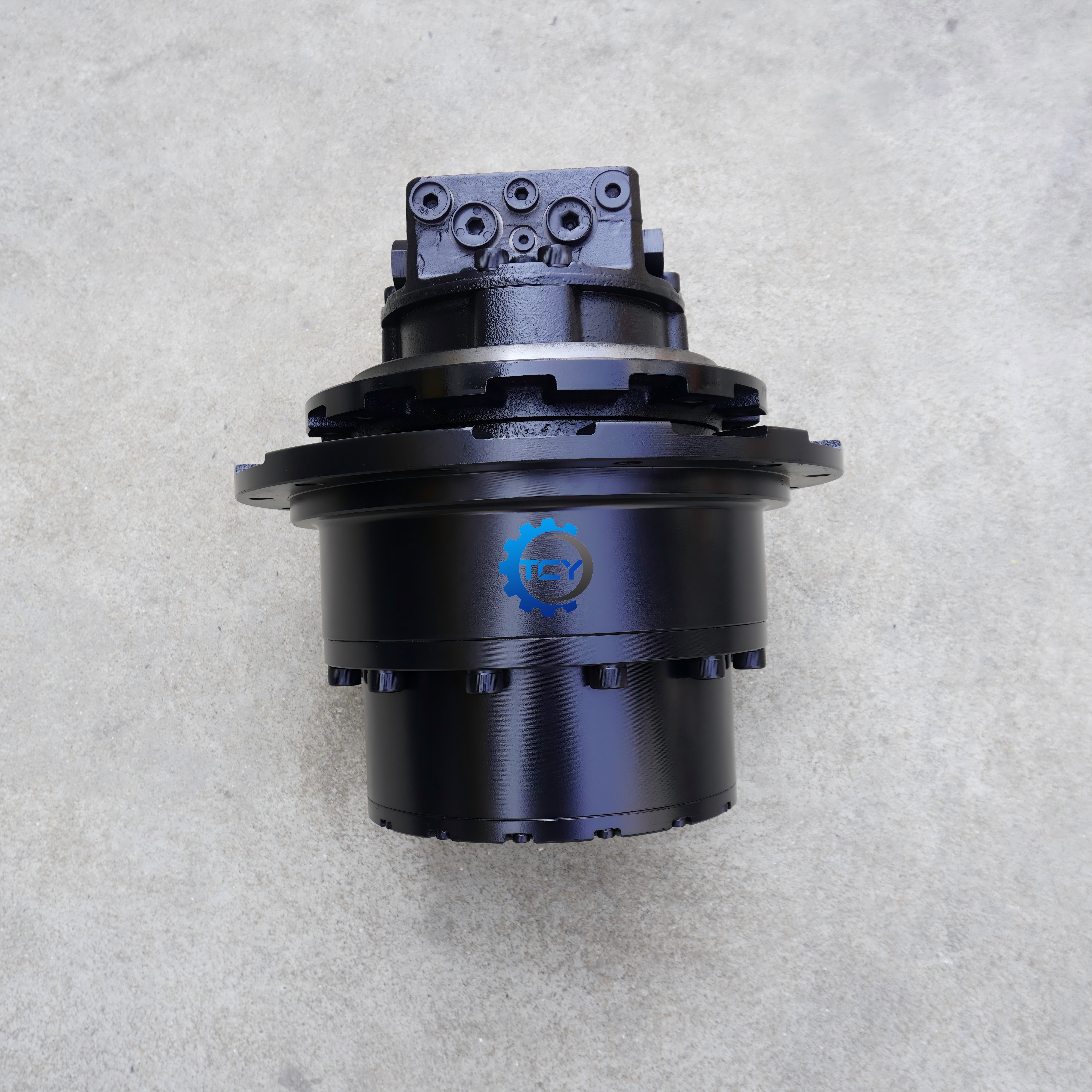

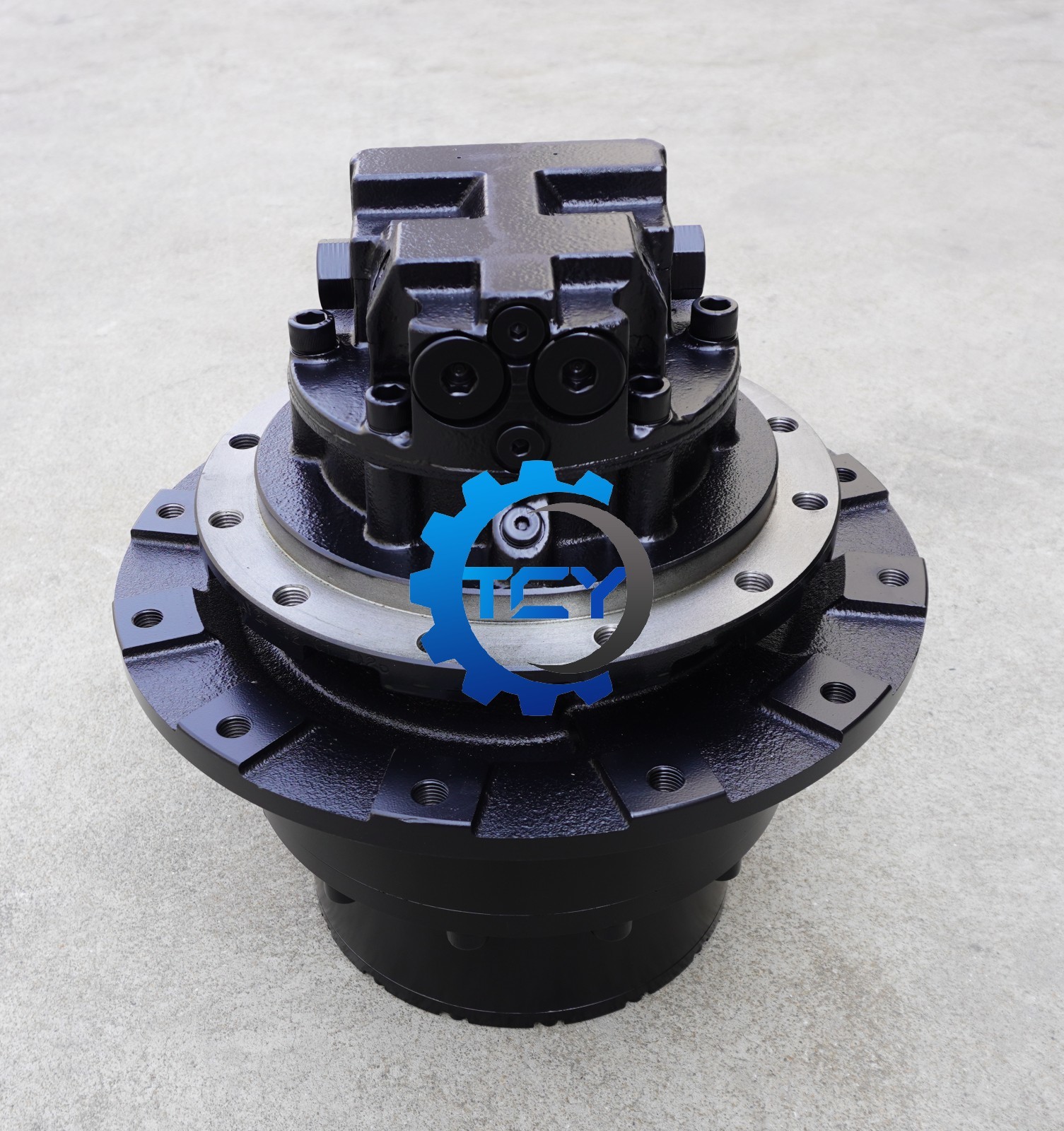

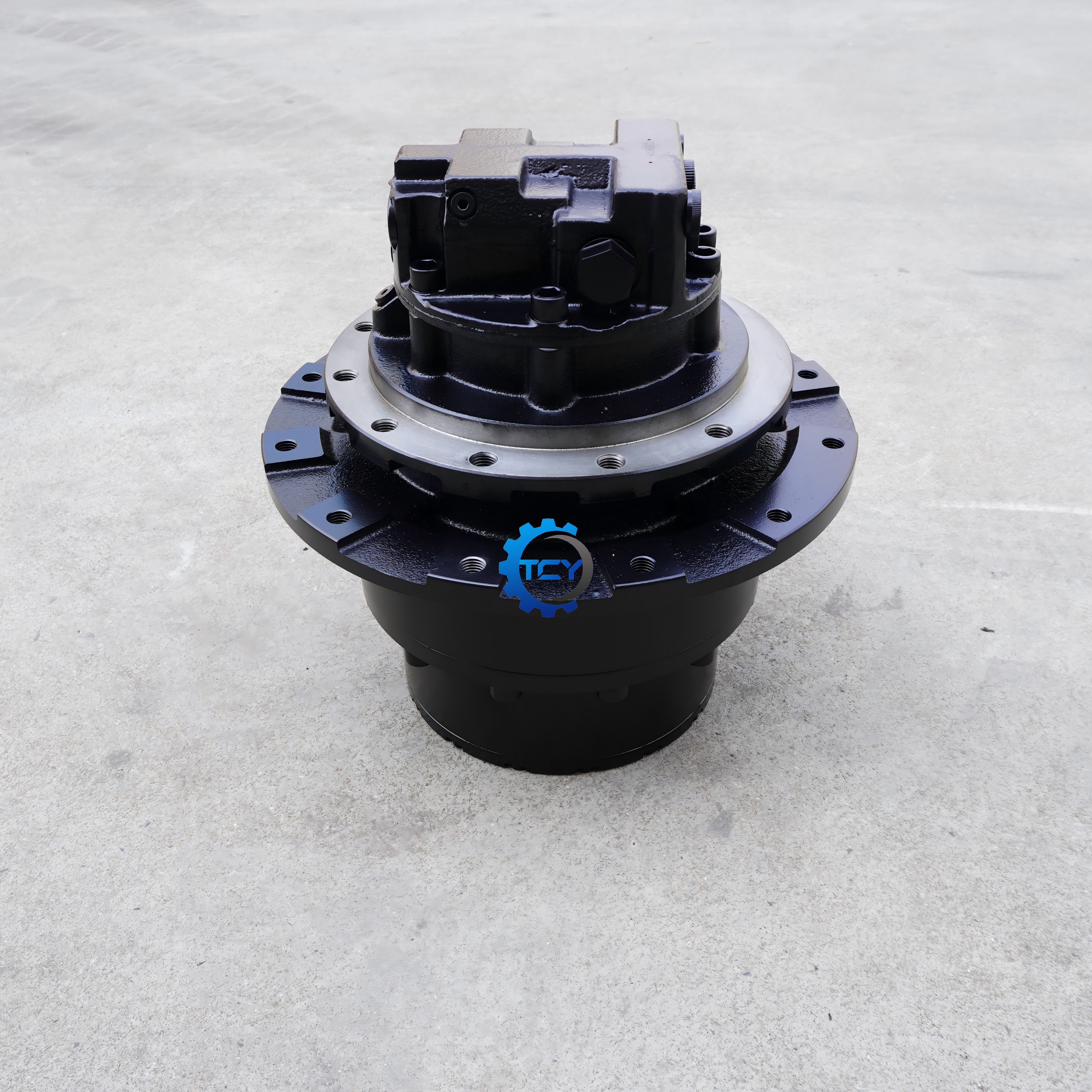

9224241 9224123 TRAVEL MOTOR WITH GEARBOX FOR ZX75UR TRAVEL DEVICE HITACHI
• High torque & stable performance
Powerful output ensures smooth and efficient travel even under heavy load and tough working conditions.
• Premium material & long service life
High-strength gears and bearings with heat treatment, wear-resistant and durable for heavy-duty use.
• Advanced sealing system
Reliable multi-layer seals prevent oil leakage, dust and water intrusion, extending component life.
• Perfect OEM replacement
Direct interchangeable with original parts, easy installation, no modification needed.
• Low noise & low maintenance
Stable operation, reduced downtime, cost-effective for construction machinery.
• Wide compatibility
Suitable for various brands and models of excavators, reliable in mining, construction and earthmoving sites.
![]()
| Pos. | Part No | Qty | Parts name |
| 9224241 | [2] | TRAVEL DEVICE ASS'Y | |
| 0 | 9207861 | [1] | MOTOR;OIL |
| 0 | 9207891 | [1] | MOTOR;OIL |
| 2 | 4468674 | [2] | BRG.;BOLL |
| 3 | 4082631 | [1] | SEAL;GROUP |
| 4 | 4468675 | [1] | DRUM |
| 6 | J931635 | [12] | BOLT |
| 8 | 4468676 | [1] | GEAR;RING |
| 9 | M341440 | [12] | BOLT;SOCKET |
| 10 | 1024217 | [1] | SPROCKET |
| 12 | 4468678 | [1] | COVER |
| 13 | 4392320 | [1] | RING |
| 14 | 4245797 | [3] | PLUG |
| 15 | 4468679 | [1] | PIN |
| 16 | 4407802 | [1] | O-RING |
| 19 | 4400403 | [1] | CARRIER |
| 20 | 4600404 | [1] | SHAFT;PROP. |
| 21 | 4600405 | [3] | GEAR;PLANETARY |
| 22 | 4600407 | [3] | BRG.;NEEDLE |
| 23 | 4392322 | [6] | PLATE;THRUST |
| 24 | 4600406 | [3] | PIN |
| 25 | 4116305 | [3] | PIN;SPRING |
| 26 | 4600408 | [1] | PLATE;THRUST |
| 29 | 4468684 | [1] | CARRIER |
| 30 | 4468685 | [1] | GEAR;SUN |
| 31 | 4468686 | [3] | GEAR;PLANETARY |
| 32 | 4468687 | [3] | BRG.;NEEDLE |
| 33 | 4392326 | [6] | PLATE;THRUST |
| 34 | 4468688 | [3] | PIN |
| 35 | 4105691 | [3] | PIN;SPRING |
| 37 | 3080619 | [1] | NUT |
| 38 | J401032 | [1] | PIN;KNOCK |
| 40 | 3095427 | [1] | NAME-PLATE |
| 41 | M492564 | [2] | SCREW;DRIVE |
Exhibition
![]()
Shipping
![]()
![]()
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
![]()
