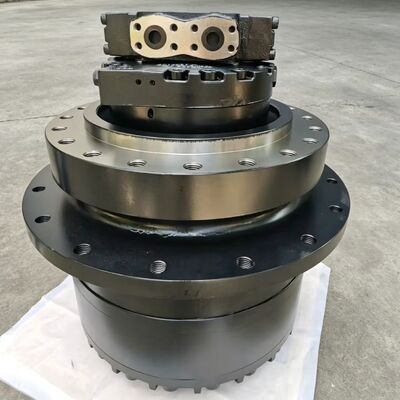

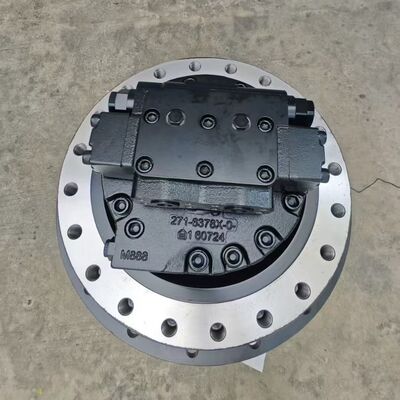

227-6103 191-5606 FINAL DRIVE for E325C 330C 330CL 330CFM 330D 330D2
| Αριθμός ανταλλακτικού | 227-6103 191-5606 2276103 1915606 | Όνομα μέρους | Συνέλευση μηχανών ταξιδιού |
|---|---|---|---|
| Αίτηση για | E325C 330C 330CL 330CFM 330D 330D2 | Ποιότητα | Ψηλά |
| Κατάσταση | Νέος | Ξύλινο μέγεθος κιβωτίων | 55*55*62 |
| MOQ | 1 | Εφαρμογή | τελική κίνηση εκσκαφέα |
227-6103 191-5606 2276103 1915606 FINAL DRIVE for E325C 330C 330CL 330CFM 330D 330D2
• High torque & stable performance
Powerful output ensures smooth and efficient travel even under heavy load and tough working conditions.
• Premium material & long service life
High-strength gears and bearings with heat treatment, wear-resistant and durable for heavy-duty use.
• Advanced sealing system
Reliable multi-layer seals prevent oil leakage, dust and water intrusion, extending component life.
• Perfect OEM replacement
Direct interchangeable with original parts, easy installation, no modification needed.
• Low noise & low maintenance
Stable operation, reduced downtime, cost-effective for construction machinery.
• Wide compatibility
Suitable for various brands and models of excavators, reliable in mining, construction and earthmoving sites.
![]()
![]()
| Pos. | Part No | Qty | Parts name |
| 1 | 3E-2338 | [2] | PLUG-PIPE |
| 2 | 7Y-0639 | [1] | GEAR-SUN (21-TEETH) |
| 3 | 7Y-0642 | [1] | GEAR-RING (63-TEETH) |
| 4 | 7Y-0645 | [1] | CARRIER |
| 5 | 7Y-0659 | [3] | GEAR-PLANETARY (22-TEETH) |
| 6 | 7Y-0661 | [3] | SHAFT-PLANETARY |
| 7 | 7Y-0662 | [4] | SHAFT-PLANETARY |
| 8 | 7Y-0663 | [4] | GEAR-PLANETARY (20-TEETH) |
| 9 | 7Y-0667 | [1] | RING-RETAINING |
| 10 | 7Y-0673 | [1] | GEAR-RING (73-TEETH) |
| 11 | 7Y-0676 | [3] | GEAR-PLANETARY (24-TEETH) |
| 12 | 7Y-0731 | [1] | CARRIER AS |
| 12A | 7Y-0656 | [3] | SHAFT-PLANETARY |
| 15 | 094-0577 B | [1] | PLATE (7-MM THK) |
| 16 | 094-0578 B | [1] | PLATE (8-MM THK) |
| 17 | 094-0579 B | [1] | PLATE (9-MM THK) |
| 18 | 094-0580 B | [1] | PLATE (10-MM THK) |
| 19 | 110-7231 | [1] | GEAR-SUN (18-TEETH) |
| 20 | 191-2521 | [1] | GEAR-SUN (23-TEETH) |
| 21 | 196-4873 | [2] | BEARING AS-BALL |
| 22 | 199-4582 | [3] | BEARING AS |
| 23 | 199-4583 | [11] | BEARING AS |
| 24 | 199-4748 | [1] | HOUSING-MOTOR |
| 25 | 199-4749 | [1] | RETAINER |
| 26 | 199-4750 | [1] | CARRIER-PLANETARY |
| 27 | 213-4737 | [1] | SEAL GP-DUO-CONE |
| 28 | 093-1731 | [1] | RING-RETAINING |
| 29 | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) |
| 30 | 095-0891 | [7] | PIN-SPRING |
| 31 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) |
| 32 | 191-2526 | [1] | COVER |
| 33 | 191-2645 | [1] | COUPLING |
| 34 | 199-4580 | [1] | HOUSING |
| 35 | 2P-3628 | [1] | SEAL-O-RING |
| 36 | 7M-8485 | [2] | SEAL-O-RING |
| 37 | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) |
| 38 | 7Y-0644 | [1] | SPACER (163X190X8-MM THK) |
| 39 | 8T-4167 | [20] | WASHER-HARD (26X44X4-MM THK) |
| 40 | 8T-4240 | [3] | RING-RETAINING |
| 41 | 9X-6032 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) |
| 42 | 1U-8846 B | SEALANT-GASKET |
Exhibition
![]()
Shipping
![]()
![]()
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
![]()
