378-9517 SWING REDUCTION GEAR for Cat320D2 323

  • 378-9517 SWING REDUCTION GEAR for Cat320D2 323
  • 378-9517 SWING REDUCTION GEAR for Cat320D2 323
  • 378-9517 SWING REDUCTION GEAR for Cat320D2 323
  • 378-9517 SWING REDUCTION GEAR for Cat320D2 323
Τόπος καταγωγής Κατασκευάζεται στην Κίνα
Μάρκα TCY
Αριθμό μοντέλου CAT323D2 L 320D2
Ποσότητα παραγγελίας min 1
Συσκευασία λεπτομέρειες ξύλινη θήκη
Χρόνος παράδοσης 2-3/Επιπραγματεύσεις
Όροι πληρωμής Τ/Τ, Alipay, Wechat... κλπ., Western Union, MoneyGram, D/P
Λεπτομέρειες
Μέρος ΑΡΙΘ. 378-9517 3789517 488-3075 4883075 Όνομα προϊόντος Εργαλείο μείωσης ταλάντευσης
Μοντέλο CAT 323D2 L 320D2 άξονας γραναζιών 14Τ/34Τ
MOQ 1 τεμ βάρος 320 κιλά
ξύλινη θήκη 55*55*60 Κατάσταση Νέος
Μάρκα TCY
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

378-9517 3789517 488-3075 4883075 SWING REDUCTION GEAR for CAT320 323F OEM 320F L 320D L 320E L 320D2 GC 323 323E LN 320D2 FM 320D 320E 320D2 L 320E LRR 323F L 323E L 538 323D2 L 320D2 323F LN 320D3 323D2 323F 320 GC 323E SA 320E LN 320E RR



This excavator swing reduction gearbox adopts high-strength planetary gear structure.
It features strong impact resistance, stable power transmission and excellent durability. Reinforced housing and multi-layer sealing effectively prevent dust and water intrusion.
Precision-processed gears deliver high efficiency, smooth slewing performance and extended service life, ideal for long-term heavy-duty construction scenarios.





Perfect Fit & Easy Maintenance: Direct interchangeability with major OEM models (Komatsu, Hitachi, Cat, Doosan, Hyundai, Sany, etc.).



Wide Application: Ideal for excavators, loaders, cranes, and rotary drilling rigs—performing reliably in construction, mining, quarrying, and infrastructure projects.

378-9517 SWING REDUCTION GEAR for Cat320D2 323 0


Model:  CAT 323D2 L 320D2 Part name:Swing Reduction Gear
Part NO.:378-9517 3789517 488-3075 4883075 MOQ:1PCS
Packing:Wooden case Place of Origin:China
Aftersale service provided:Online support  Apply To:CAT Excavator
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online

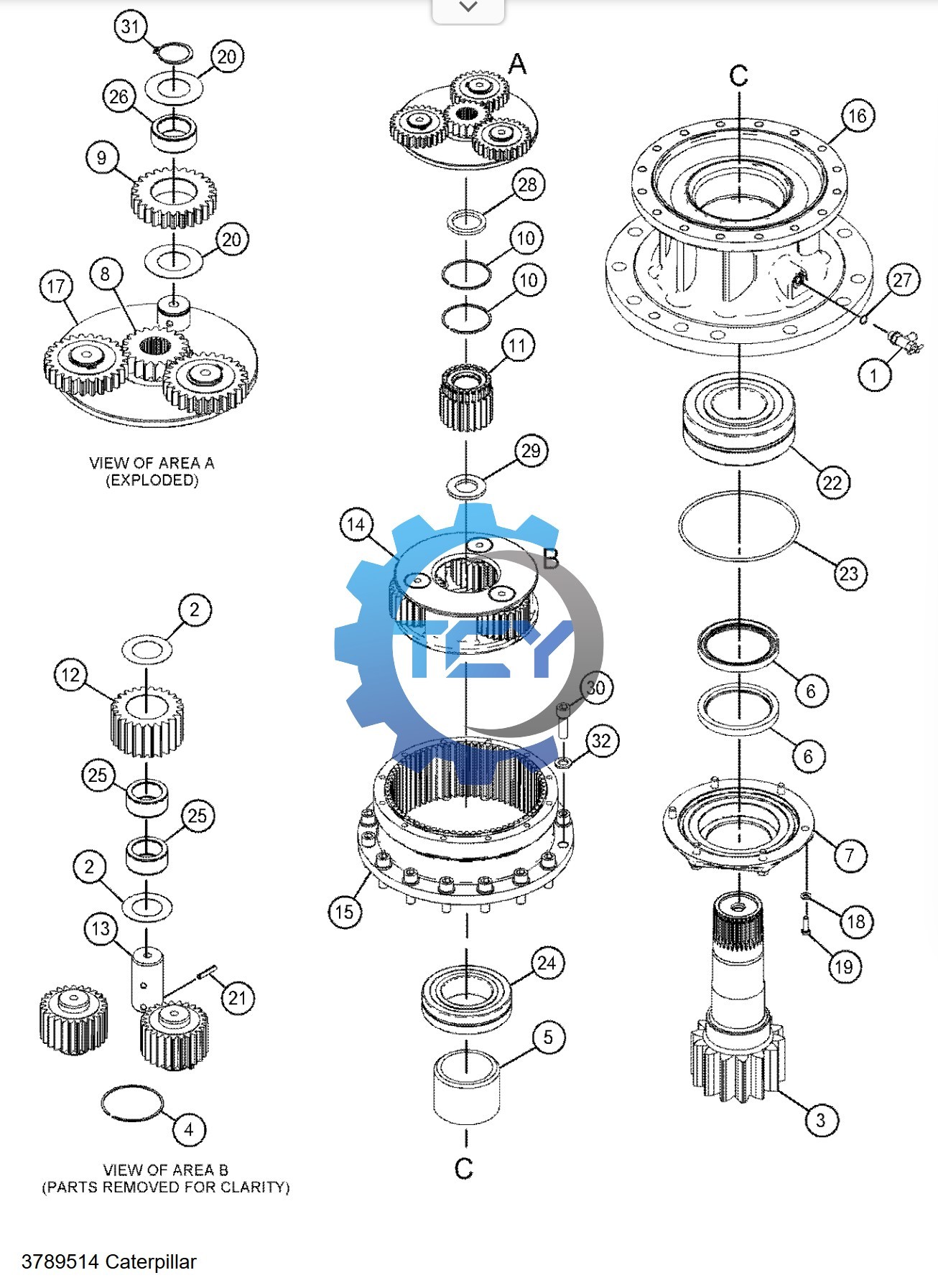

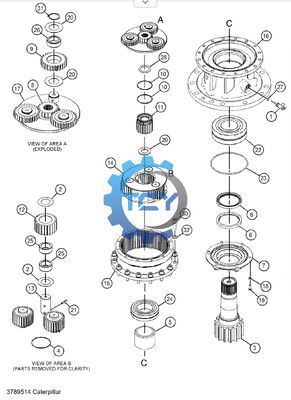

NO. PART NO. QTY PART NAME
1 6V-7238 [1] VALVE-SHUTOFF
2 094-0611 [6] WASHER (47.3X76X1-MM THK)
3 148-4636 [1] SHAFT-PINION
4 148-4640 [1] RING-RETAINING
5 171-9383 [1] SPACER
6 199-4561 [2] SEAL-LIP TYPE
7 227-6228 [1] CAGE
8 367-8364 [1] GEAR-SUN (20-TEETH)
9 367-8365 [3] GEAR-PLANETARY (26-TEETH)
10 367-8367 [2] RING-RETAINING
11 367-8368 [1] GEAR-SUN (23-TEETH)
12 367-8369 [3] GEAR-PLANETARY (25-TEETH)
13 378-9513 [3] SHAFT
14 378-9514 [1] CARRIER-PLANETARY
15 378-9515 [1] GEAR-RING (73-TEETH)
16 378-9516 [1] HOUSING
17 378-9609 [1] CARRIER AS
18 451-2182 [6] WASHER-HARD (13.5X25.5X3-MM THK)
19 453-3447 M [6] BOLT (M12X1.75X40-MM)
20 094-0584 [6] WASHER (40.3X72X1-MM THK)
21 509-6676 [3] PIN-SPRING
22 095-1022 [1] BEARING-ROLLER
23 148-4642 [1] SEAL-O-RING
24 148-4643 [1] BEARING
25 296-6268 [6] BEARING AS-ROLLER
26 346-5215 [3] BEARING AS
27 3K-0360 [1] SEAL-O-RING
28 7I-7623 [1] SPACER (52X69.5X6-MM THK)
29 7Y-1434 [1] SPACER (40X69.5X6-MM THK)
30 8T-0348 M [16] BOLT-SOCKET HEAD (M16X2X50-MM)
31 8T-4240 [3] RING-RETAINING
32 9X-8268 [16] WASHER (17.5X30X3.5-MM THK)





Related Products



378-9517 SWING REDUCTION GEAR for Cat320D2 323 1

Exhibition

378-9517 SWING REDUCTION GEAR for Cat320D2 323 2



Company Introduction

378-9517 SWING REDUCTION GEAR for Cat320D2 323 3

378-9517 SWING REDUCTION GEAR for Cat320D2 323 4

Packaging

378-9517 SWING REDUCTION GEAR for Cat320D2 323 5



378-9517 SWING REDUCTION GEAR for Cat320D2 323 6




FAQ



Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.



Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.



Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be         prepared after receiving the payment. The preparation time depends on the content of the order.



Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
